SUBMERSIBLE PUMPS

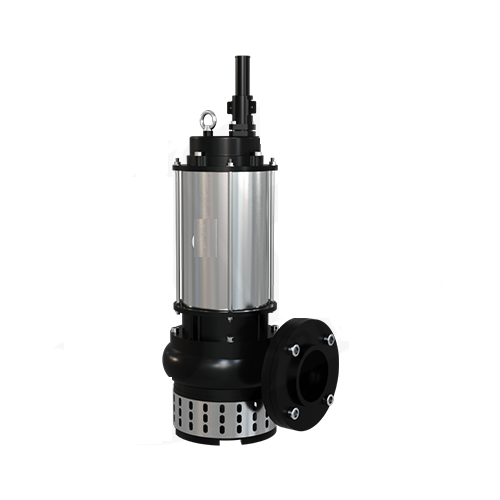

We develop high-quality Submersible Nonclog Sewage Pumps which transfer the solid material such as mining, sewage treatment, oil/gas industry, dredging and many more. It has a robust construction and reliable design.
The power consumption of the Submersible Nonclog Sewage Pumps is quite low which makes it a preferred choice among various industrial applications. Since the pump is submerged most of the time, it doesn't produce much noise. JB Pumps manufactures a leak-proof Submersible Nonclog Sewage Pumps which is used as a dewatering application in heavy industries like power, steel, fertilizer and cement.
| Motor | Two Pole Continuous Duty Squirrel Cage Submersible Type Induction Motor |
|---|---|
| Insulation Class | F |
| Protection | IP - 68 / Thermal Over Load |
| Cable | PVC Insulated Copper Conductor Flexible |
| Shafting | S.S. 410 / S.S. 431 |
| Range |
1 HP and 2 HP (220v / 1 Phase) 1 HP and 25 HP (420v / 3 Phase) |
| RPM | 2800 |
| Size | 2 inches to 6 inches |
| Connection | DoL |
| Motor Body | S.S. 202 |
|---|---|
| Pump Casing | C.I IS 210 FG260 / S.S. 304 / S.S. 316 |
| Impeller | C.I IS 210 FG260 / S.S. 304 / S.S. 316 |
| Shaft | S.S. 404 |
| Strainer | S.S. 202 |
| Mech. Seal | Double Type: SIC Vs SIC / TC Vs TC |
| Bearing | Deep Groove Ball Bearing (SKF) |

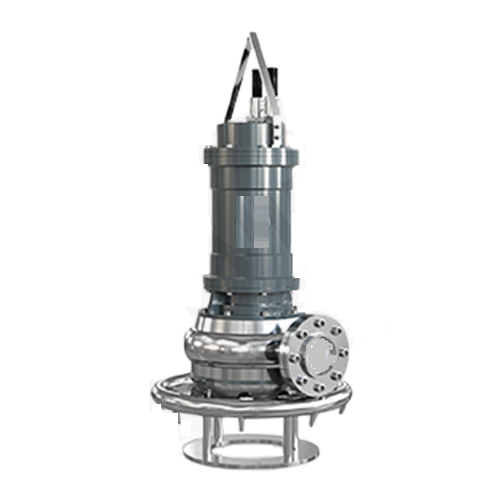

Submersible slurry pumps are pumps designed to handle abrasive and high-density slurries in submerged conditions. These pumps are designed to operate underwater, with the motor and pump unit submerged in the slurry they are pumping. The submersion of the pump unit ensures that the slurry is kept contained and prevents it from leaking into the surrounding environment. The selection of submersible pumps can be done based on several specifications. Choosing the first and leading submersible pumps mainly depends on type, application, and after that, the utmost flow of discharge must be decided. Submersible Sludge & Slurry Pumps by JB Pumps has great efficiency in handling the slurry. It can handle both solid and liquid material.
| Motor | Four Pole Continuous Duty Squirrel Cage Submersible Type Induction Motor |
|---|---|
| Insulation Class | F |
| Protection | IP - 68 / Thermal Over Load / Moisture |
| Cable | PVC Insulated Double Sheathed Copper Conductor Flexible |
| Range | 2 HP to 100 HP |
| RPM | 1450 |
| Size | 2 inches to 8 inches |
| Connection | DoL or Star Delta |
| Motor Body | C.I. / Alu. Alloy / SS |
|---|---|
| Pump Casing | C.I / Alu / S.S. 304 / S.S. 316 |
| Impeller | C.I., Aluminium, S.S 304, S.S. 316 |
| Shaft | S.S. 410 / S.S. 431 |
| Mech. Seal | Double Type: TC vs TC (Pump Side) / SIC vs SIC |
| Bearing | Deep Groove Ball Bearing (SKP) (Top) Double Row Angular Contact (Bottom) |

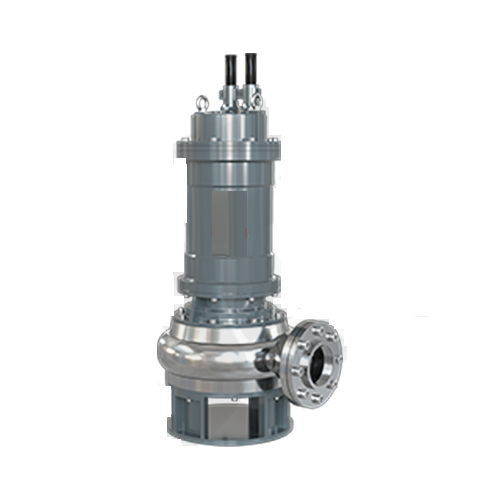

Submersible Sludge Pumps can efficiently handle viscous and abrasive sludge. Its high-capacity motor is capable enough to transfer a great quantity of sludge and slurry without any loss. Its compactable design ensures the minimum power consumption and high production. It has a rotating impeller which increases the speed of the material and it produces the centrifugal force. With the help of this force, the sludge and slurry are pumped out in an efficient time. They are also capable of handling solids that would clog other types of pumps. Submersible Sludge Pumps by TANFLOW has great efficiency in handling the slurry. It can handle both solid and liquid material.
| Motor | Four Pole Continuous Duty Squirrel Cage Submersible Type Induction Motor |
|---|---|
| Insulation Class | F |
| Protection | IP - 68 / Thermal Over Load / Moisture |
| Cable | PVC Insulated Double Sheathed Copper Conductor Flexible |
| Range | 2 HP to 100 HP |
| RPM | 1450 |
| Size | 2 inches to 8 inches |
| Connection | DoL or Star Delta |
| Motor Body | C.I. / Alu. Alloy / SS |
|---|---|
| Pump Casing | C.I. / Alu / S.S. 304 / S.S. 316 |
| Impeller | C.I., Aluminium, S.S. 304, S.S. 316 |
| Shaft | S.S. 410 / S.S. 431 |
| Mech. Seal | Double Type: TC vs TC (Pump Side) / SIC vs SIC |
| Bearing | Deep Groove Ball Bearing (SKP) (Top) Double Row Angular Contact (Bottom) |

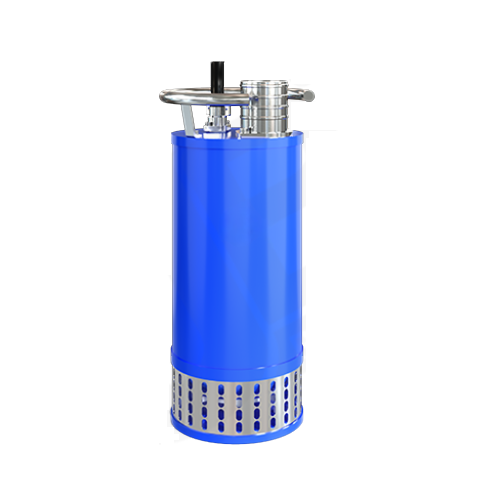

4. Submersible Dewatering Pumps
We are a leading manufacturer of the Submersible Dewatering Pumps which is quite reliable for the industrial application for removing the water from the deep inside. JB Pumps keeps a full range of pumps in all sizes available at all times. These pumps offer large solids handling capability whilst maintaining optimum pump hydraulic efficiencies. We develop the Submersible Dewatering Pumps are resistant to corrosion. It is situated at the ground level to reduce the water level. Once the water is reduced it maintains the level. It is mostly used to reduce the water level at the building site, construction site, underground railways, bridges or in open-cast mining. Noise pollution through Submersible Dewatering Pumps is very less as it is present under the water. In this pump, cavitation is never an issue, because there is no "spike" in pressure as the water flows through the pump. Easy to use and maintain, JB Pumps promise optimal performance.
| Motor | Two Pole Construction Duty Squirrel Cage Submersible Type Induction Motor. |
|---|---|
| Insulation Class | F |
| Protection | IP - 68 / Thermal Over Load / Moisture |
| Cable | Oil Proof PVC Insulated Double Sheathed Copper Conductor Flexible Cable. |
| Range | 1 HP to 50 HP |
| RPM | 2800 |
| Size | 2 inches to 6 inches |
| Connection | DoL or Star Delta |
| Motor Body | S.S. 202 / 304 or Aluminium |
|---|---|
| Cooling Jacket | S.S. 202 / 304 / M.S. |
| Impeller | C.I IS 210 FG260 / S.S. 304 / S.S. 316 |
| Shaft | S.S. 410 |
| Strainer | S.S. 202 |
| Mech. Seal | Double type: TC Vs. TC |
| Bearing | Deep Groove Ball Bearing (Top), Double Row Angular Contact Bearing (Bottom) |
